Mobile DVR with GPS Speed Monitoring
Mobile DVR with GPS Speed Monitoring
According to data released by the Ministry of Transport in 2024, the annual accident rate of commercial vehicles in China is 37% higher than that of passenger vehicles. Over 60% of the related disputes stem from challenges in "responsibility determination" and "insufficient driver behavior monitoring." A survey by a logistics company found that fleet operations incur over ¥50,000 in additional monthly fuel costs due to route deviations and idling. Behind these numbers is the growing demand among fleet managers for precise and intelligent monitoring tools.
What Kind of MDVR Do Commercial Fleets Need?
Whether it's logistics trucks, passenger buses, dump trucks, cold chain transport vehicles, or even forklifts, construction machinery, and ships—commercial fleets operate in complex environments. Long-distance driving causes fatigue, real-time coordination is needed across vehicles, cargo and passenger safety is paramount, and harsh road conditions are frequent.
Traditional dashcams fall short, offering only fragmented footage without context such as time, location, or speed. A mobile DVR with GPS speed monitoring enables real-time collection and analysis of location, velocity, and behavior—bringing science and structure to fleet management.

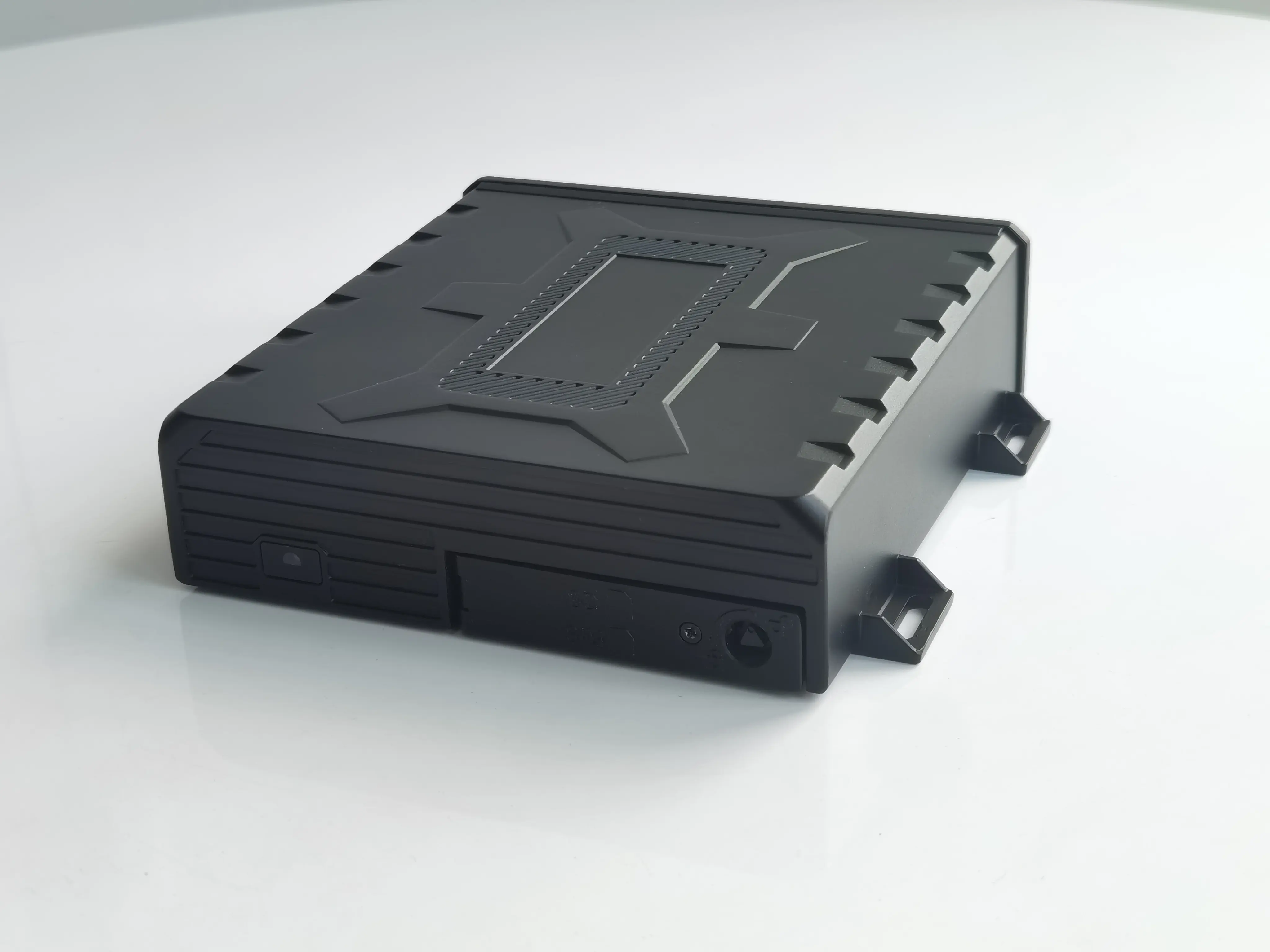

YUWEI F6 Mobile DVR:
Built as an intelligent video terminalfor commercial fleets, the YUWEI F6 integrates an industrial-grade high-speed processor and delivers four core capabilities:
ADAS/DSM smart warnings + 6-channel HD monitoring + dual-mode high-precision positioning + secure data storage—making it the "safety brain" of your fleet.
1. Core Features: From Monitoring to Early Warning
① Advanced Driver Assistance:Integrates ADAS (Advanced Driver Assistance Systems), DSM (Driver State Monitoring), and BSD (Blind Spot Detection). Detects fatigue (e.g., eye closure/yawning), harsh braking/turning (triggered by G-force ≥ 0.6), passenger falls, cargo overloading, and more—offering 12 types of scenario-based warnings. Alerts are sent via buzzer and mobile app notifications, reducing human error risk by over 70%.
② Multi-channel Monitoring:Supports up to 6 AHD/CVBS video inputs (12V/0.5A per channel power supply available) to cover front view, cabin, cargo, rear view, and blind spots. Includes 2 audio inputs for synchronized sound recording. Together with GPS and speed data, it creates a four-dimensional chain of evidence: video + audio + location + speed.
③ High-Precision Positioning:Built-in BDS/GPS dual-mode module, compatible with RTK high-precision positioning (requires dedicated antenna) and inertial navigation. Positioning accuracy: ±0.5 km/h. Maintains accurate trajectory even in signal-blocked areas like tunnels or urban canyons.
④ Secure Data Storage:Dual storage system—supports SD card (up to 2TB) + M.2 SSD. A patented storage protection mechanism prevents unauthorized removal. Uses H.265 compression and single-board high-integration design to minimize failure rate. Features UPR (Uninterrupted Power Recording) with three supercapacitors to retain footage during sudden power loss. Low-voltage protection automatically cuts off abnormal current, protecting vehicle batteries.
⑤ Multi-Scenario Connectivity:Supports 4G multimedia transmission and Wi-Fi communication for remote live view and playback. Equipped with RS232/RS485/CAN bus interfaces to connect with OBD, tire pressure monitors, and other external devices for data integration.
2. Hardware Built for Harsh Environments
Commercial vehicle environments are demanding—high temperatures, vibration, voltage fluctuations. The F6 is designed to withstand it all:
① Rugged & Durable:Die-cast aluminum casing, IP67-rated, wide operating temperature range from -30°C to 70°C (storage: -40°C to 85°C). Shock and vibration resistant—ideal for forklifts, construction equipment, and other heavy-duty vehicles.
② Power & Energy Efficiency:Wide 9–32V input voltage, with battery protection (8.5V±0.5V for 12V systems, 17V±0.5V for 24V systems). Static current <2mA. Supports zero-power sleep mode and ignition or RTC timer wake-up to reduce standby consumption.
③ Expandable Interfaces:Equipped with 2 RS232 ports (5V/500mA), 1 RS485 port for flexible external device integration. Uses Fakra-C and Fakra-D connectors for GPS and communication antennas to ensure signal stability.
Who Needs the YUWEI F6 Mobile DVR?
1. Logistics & Passenger Fleets:Monitor speeding and fatigue in long-haul driving, use route deviation alerts to optimize delivery efficiency.
2. Construction & Specialty Vehicles:Retain local video in signal-dead zones (e.g., mines, construction sites) for post-operation compliance reviews.
3. Cold Chain & Hazardous Materials Transport:Connect to external temperature/humidity sensors to trigger real-time alerts and prevent spoilage or accidents.
4. Forklifts & Maritime Vessels:Record loading/unloading and navigation status to address operational disputes and meet safety audit requirements.
Why Choose YUWEI F6?
1. Industry-Specific Fit:Designed for forklifts, heavy equipment, and specialty vehicles. Flexible 6-channel configuration supports diverse surveillance needs.
2. Reliable Data Security:Patent-protected storage + dual-storage design + H.265 encoding ensure data integrity and tamper-resistance.
3. Cost-Effective Excellence:Industrial-grade performance at 30% lower cost than imported systems with similar functionality.
The YUWEI F6 is more than a device—it’s a fleet optimization solution.
When every vehicle’s location, speed, and behavior become analyzable data, your fleet management becomes smarter, safer, and more efficient.
