Home Solution 360°

Background and Challenges

Visual Blind Spots:

Cause of the accident:Tthe long body of the trailer truck, there are serious visual blind spots, especially on the left and right sides and the rear, which easily lead to serious traffic accidents.

Challenges:

• Hard to Judge Safety Distance： In complex road conditions (such as winding mountain roads), it is difficult for the driver to accurately judge the safety distance, which poses a potential risk of accidents.

360° Surround View System Solution

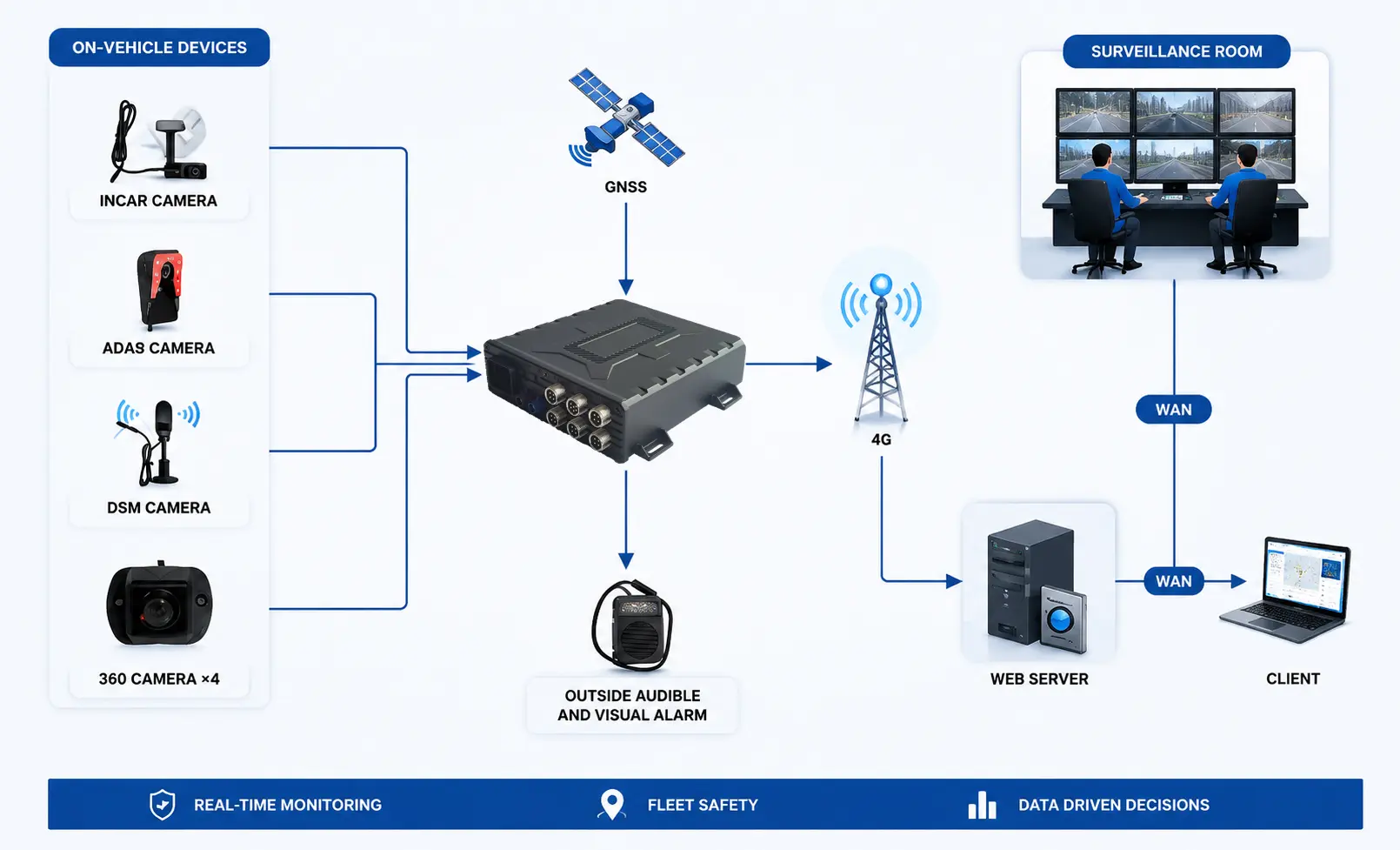

System Overall Architecture (Terminal-Pipe-Cloud)

On-board Unit Layer (Terminal)

Core: AI-MDVR, 8 CH MAX cameras, interactive devices.

Network Transmission Layer (Pipe)

Core: 4G wireless network

Cloud Platform Layer (Cloud)

Core: Based on mainstream cloud service providers, providing device management, video surveillance, data analysis and other functions.

360° Surround View System Solution

360° Surround View System Function

The 360° Surround View System delivers an integrated 'Cloud-Pipe-Terminal' safety protection system architecture. By combining seamless 2D/3D panoramic imaging to effectively eliminate blind spots with AI-driven ADAS, DMS, and BSD algorithms, it provides comprehensive intelligent driving assistance. Paired with an active security cloud platform for real-time monitoring, data analysis, and fleet management , this solution empowers operators to proactively prevent accidents and optimize fleet performance.

2D/3D Surround View

Outputs clear 2D bird's-eye view or high-quality 3D panoramic images to effectively eliminate visual blind spots.

Driver Status Monitoring (DMS)

Monitors risky driver behaviors such as fatigue, distraction, phone usage, and smoking with over 95% accuracy.

Advanced Driving Assistance (ADAS)

Provides forward collision, headway monitoring, and lane departure warnings to assist drivers.

Blind Spot Detection (BSD)

Delivers pedestrian and non-motorized vehicle protection warnings with over 90% accuracy.

Real-time Monitoring

Tracks vehicle location, speed, and status on an electronic map for instant fleet oversight.

Video Surveillance

Accesses live and recorded footage from on-board cameras for incident verification and driver behavior review.

AI-Powered Alerts

Receives real-time warnings for driver fatigue and unsafe behaviors to proactively prevent accidents.

Track Playback & Route Creation

Queries historical driving tracks for investigation and converts verified tracks directly into standard routes.

Driving Behavior Analysis

Generates driver scorecards, rankings, and customized reports on speeding, harsh braking, and idling.

Remote Maintenance & FOTA

Supports remote software upgrades and fixes issues instantly without requiring vehicles to return to the factory.

Fuel Monitoring

Tracks the vehicle's fuel level in real-time for fuel consumption analysis and anti-theft.

360° Surround View System Function

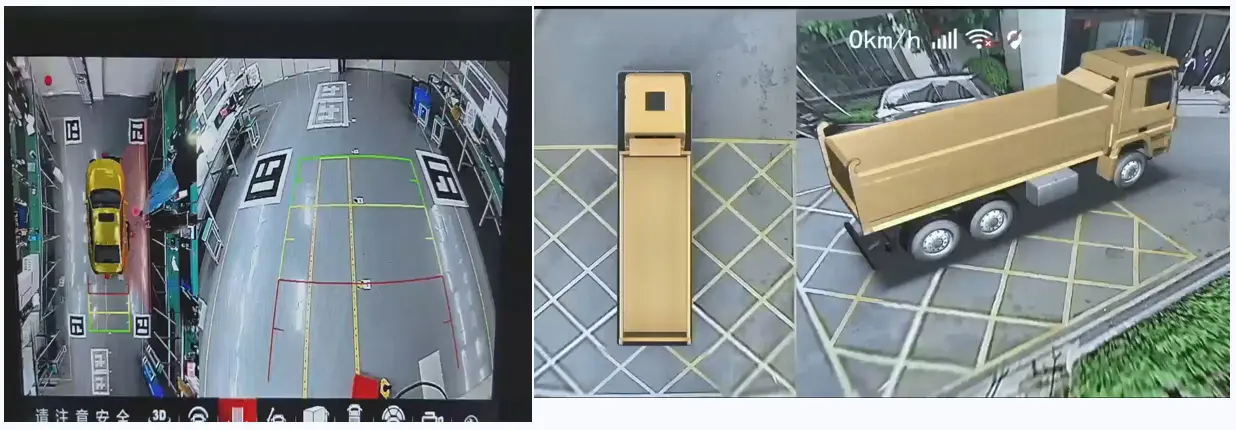

Core Functions: 2D AVM

360° Surround View System Function

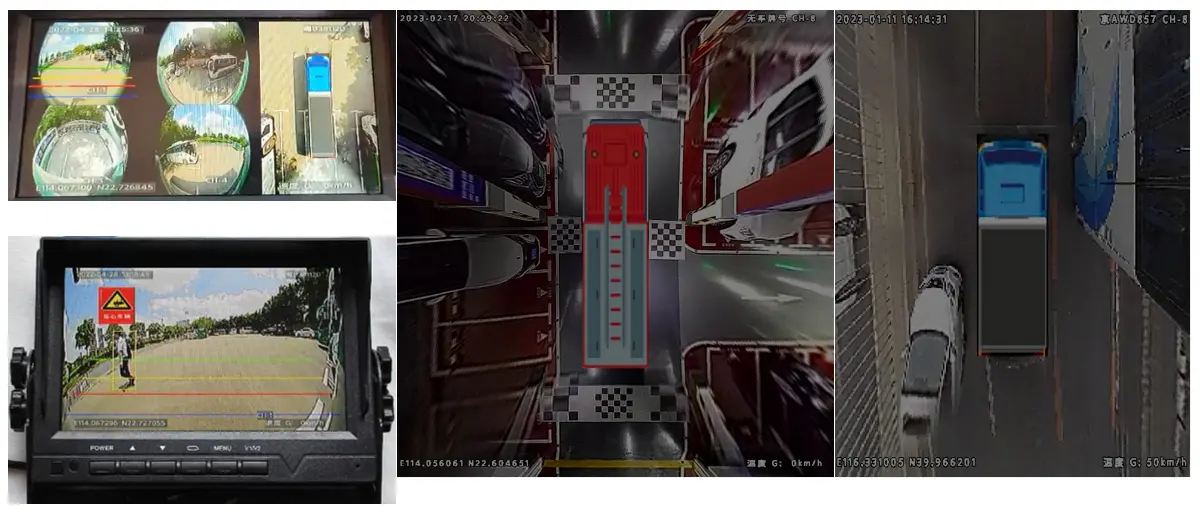

Core Functions: 3D AVM

360° Surround View System Function

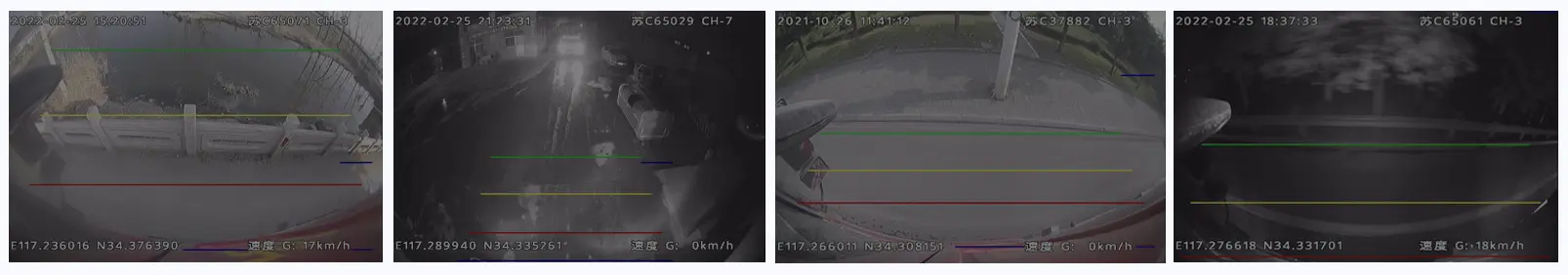

Core Functions: BSD

360° Surround View System Function

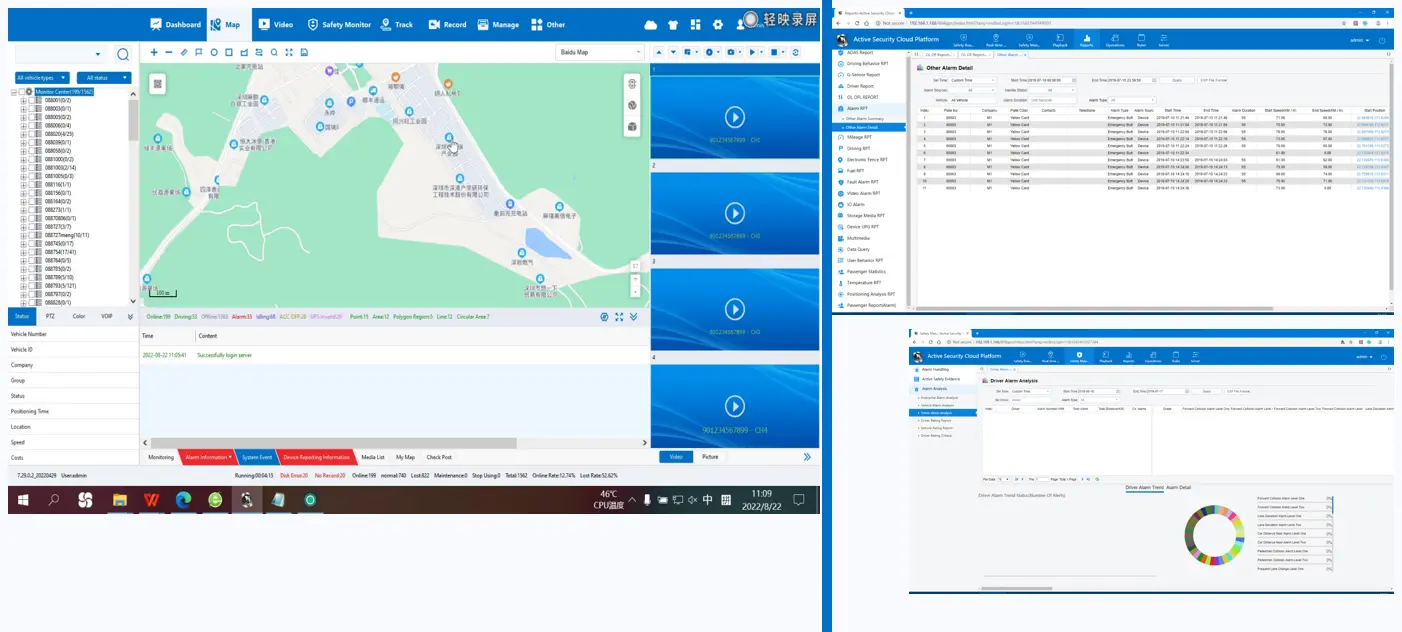

360° Surround View System Management Platform

Data Analytics:

Generate detailed reports on passenger flow, and operational efficiency to optimize fleet performance.

Driving Behavior Analysis:

1.Driver Scorecard:Generate a comprehensive score for each driver based on safety, economy, and compliance metrics.

2.Behavior Ranking:Rank drivers by their performance to identify top performers and those needing improvement.

3.Customized Reports:Create detailed reports on driving behavior, including speeding, harsh braking, and idling.

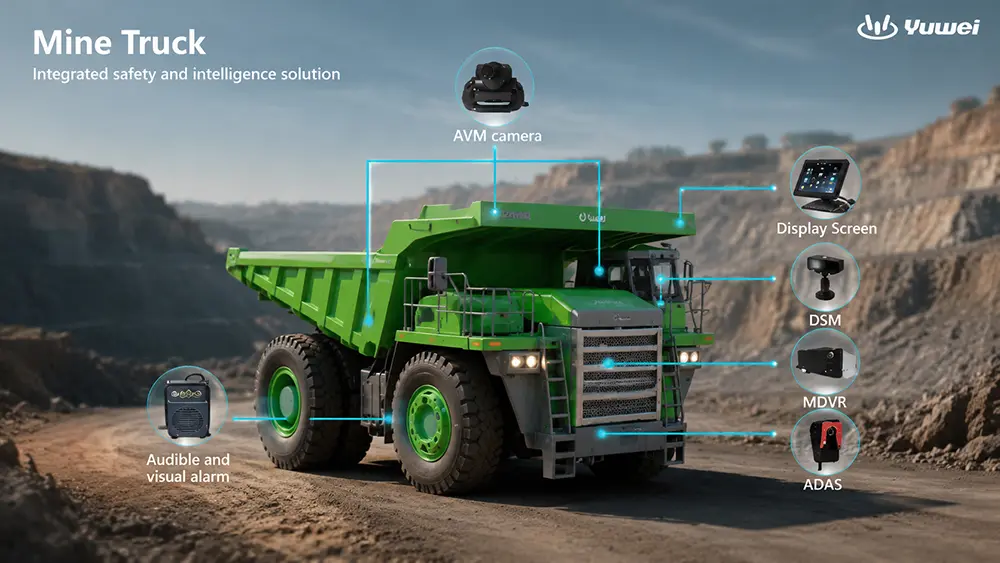

mine truck 360° Surround View System Solution

Overall Solution

Core Configuration:

360° Surround View Camera System
Audible & Visual Alarm System
Waterproof Mobile DVR (MDVR)
Driver Status Monitoring (DSM)
Obstacle Detection Radar

fire truck 360° Surround View System Solution

KeyPoints:

Mine Site Safety

360° view and obstacle detection navigate complex, hazardous environments with confidence.

Rugged & Reliable

Waterproof and shock-resistant design ensures flawless operation in harsh mining conditions.

Optimized Fleet Management

Integrated video monitoring and positioning enable better dispatch and safety oversight.

360° Surround View System Hardware Product

ADAS Camera

Installed on the front windshield to achieve forward collision warning and lane departure warning.

DSM Camera

Installed inside the cab to monitor driver fatigue, distraction, phone calls, smoking, and other risky behaviors.

Interior/Exterior Camera

Fully covers key areas like cockpit, passenger zone, doors, and rear, achieving blind-spot-free monitoring of the vehicle.

360 Camera

Mounted around the vehicle body to eliminate visual blind spots and monitor the surrounding road environment

External Audible and Visual Alarm

Trigger a public announcement for astudent stranding alert

External Screem

For reversing, in-car monitoring

RFID Card Reader

Used for driver identity recognition and attendance when boarding and alighting.

Fuel sensor

Monitors the vehicle's fuel level in real-time, providing data for fuel consumption analysis and anti-theft.

After-sales Service and Support System

Full Lifecycle Technical Service

We provide comprehensive technical support covering preventive maintenance, daily support, network adjustment, and fault resolution to ensure system stability.

Field Installation Assistant Service

Guides installers to construct according to strict specifications through real-time voice guidance or an intelligent APP

Remote Maintenance & FOTA

Supports batch remote software upgrades and maintenance. Fixes issues instantly without requiring the vehicle to return to the factory, significantly improving efficiency.

360° Surround View System Solution

Related products

This solution integrates the 360° function into the main DVR host, providing a more compact and streamlined architecture while offering a cost-effective option for comprehensive vehicle monitoring.

Dual-lens AI Dashcam V5C

V5C

Leam More

V5C is a cost-effective all-in-one AI Dashcam with compact design, real-time video transmission, good positioning, and built-in face recognition algorithms. It delivers reliable monitoring for commercial fleets, logistics vehicles, and safety-critical applications.

ADAS Camera For Car

ADAS-A1080PS-Y5A

Leam More

Advanced Driving Assistance System(ADAS) HD camera is a key component of the advanced assisted driving system. Through ADAS software algorithms, advanced driving assistance functions such as lane departure warning, lane keeping, collision avoidance or pre-collision detection, pedestrian protection, adaptive lighting control, and traffic sign recognition can be realized.

Full HD Car DVR 1080p

Leam More

Waterproof HD Intelligent Video Terminal F6 is a waterproof vehicle-mounted intelligent video terminal based on an industrial-grade core high-speed processing chip. It integrates ADAS, DSM, BSD, and other intelligent driving warning systems, 4G broadband multimedia wireless transmission, WIFI communication, and supports up to 6-channel DVR high-definition monitoring and video recording storage. Additionally, it offers BDS/GPS dual-mode positioning, RTK high-precision positioning, and inertial guidance, all in a single device.

Industry application: It can be widely used in forklift trucks, construction machinery, ships, and other special vehicles and means of transport.

DSM camera HD Y13

DSM-A720PS-Y13

Leam More

The DSM camera high-definition Y13 supports the following functions: 1. Fatigue driving detection 2. Smoking detection 3. Phone call detection 4. Distracted driving detection 5. Abnormal state detection.

Waterproof Backup Camera

A720PJ-3228-412

Leam More

The waterproof reverse camera (rear blind spot camera) is installed at the rear of the truck and is combined with a display screen installed inside the vehicle to form a complete reverse camera system. During reverse parking, real-time video images of the rear area can be viewed.

Front blind spot HD BSD camera

A720PJ-3123-412-F

Leam More

The Front blind spot HD BSD camera is a camera mainly used to monitor the blind spot on the right side of the vehicle. It can transmit real-time images to the algorithm host, identify pedestrians in blind spots, and perform pedestrian collision warnings in dangerous areas. Both in-car smart prompts and external audio are used. Optical alarms provide two-way danger reminders for drivers and pedestrians, thereby greatly reducing traffic accident rates.

360° Camera System Q&A

Is 360 surround view camera worth it?

We recommend that if you own commercial vehicles or construction vehicles that require frequent reversing and turning, it is worth considering purchasing a 360 surround view camera system. It can effectively assist you in those situations.

How much does a 360 around view system cost?

The 360 around view system requires multiple cameras, and the number of cameras installed varies depending on the type of vehicle, such as trucks, buses, school buses, etc. You can provide your vehicle model by contacting us at hello@yuweitek.com, and we will send you an official quotation email within 8 hours!

Do your products have certification?

Currently, we sell globally, and our 360° camera system is certified with CE (USA), FCC (USA), UKCA (UK), and NBTC (Thailand). Our factory in China has also obtained ISO 9001 quality certification. You can rest assured when purchasing our products.

How does YUWEI 360 improve fleet safety and efficiency?

With a comprehensive camera setup that includes front, rear, side, and interior cameras, YUWEI 360 reduces blind spots. It not only records significant events but also continuously monitors and handles high-risk behaviors before accidents occur. The system integrates with the YUWEI platform to provide real-time insights and analytics, improving fleet management and operational efficiency.

How does YUWEI 360 handle scalability?

YUWEI 360 is designed to be highly scalable and customizable, suitable for various vehicle requirements. It allows the addition of up to 6 channels to accommodate side, rear, and interior camera setups.

What types of alerts does YUWEI 360 provide?

YUWEI 360 provides alerts for high-risk behaviors such as speeding, hard braking, and route deviation. These alerts help fleet managers address potential issues promptly.
