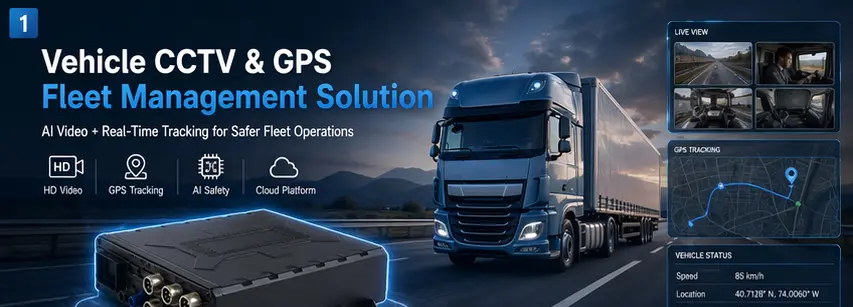

Vehicle CCTV with GPS
Vehicle CCTV with GPS Tracking
In commercial fleet operations, high-definition video, real-time GPS and AI analytics serve as the core pillars for safety assurance, claim risk mitigation and driving behavior standardization. Integrating vehicle-mounted CCTV, mobile digital video recorders (MDVR), AI dashcams and GPS technologies, YUWEI delivers one-stop safety management solutions for global fleets.

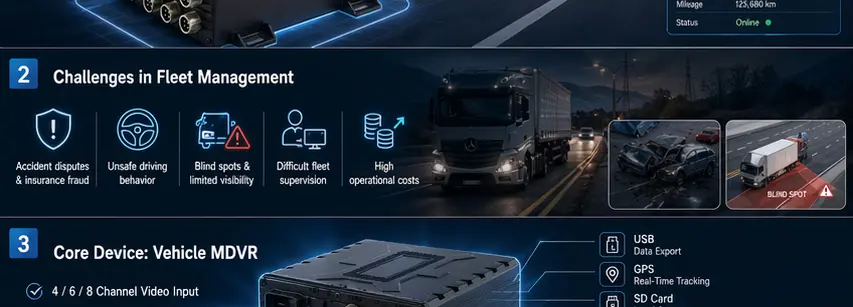

Core Device: Mobile Digital Video Recorder (MDVR)
The new-generation YUWEI F4/F6 series 4/6/8-channel vehicle MDVR adopts efficient H.264/H.265 compression and supports 1080P full HD camera connection, fully adapting to harsh and complex working conditions of various commercial vehicles.

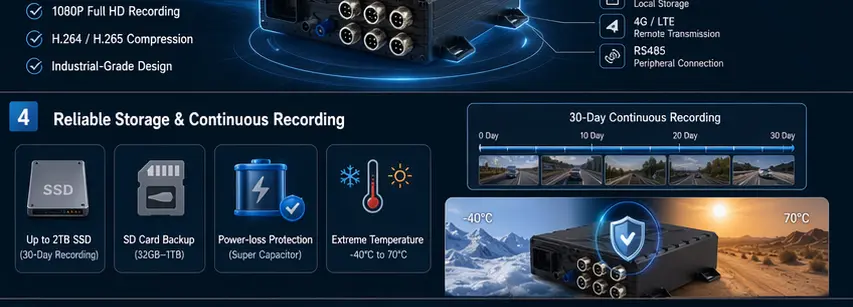

1. Storage & Continuous Recording
Equipped with a 2.5-inch SSD (up to 2TB) for 30-day loop recording. It supports 32GB–1TB SD card for alarm video backup. A built-in super capacitor captures 2–3 seconds of critical footage during power outages. The integrated heater ensures stable operation in temperatures ranging from -40℃ to 55℃.
2. Interface & Environmental Protection
Built with a 3-axis gravity sensor and multiple ports including USB and RS-485. It supports GPS/Beidou dual-mode positioning, 3G/4G/5G and Wi-Fi connectivity, with 9V–32V wide voltage input. Featuring IP67 ingress protection, vibration and impact resistance, it complies with EN 61373 standards and operates steadily from -30℃ to 70℃.
3. Intelligent Linkage
Seamlessly compatible with the YUWEI Elite GPS series, enabling dual-mode positioning (accuracy ≤ 5 meters), real-time video streaming and synchronized alarm recording, along with a full range of intelligent management functions.
Matching cameras come with IP67 protection, 1080P resolution and 940nm infrared night vision (10-meter range). With vandal-proof structure and multiple focal length options, they enable 360° all-scenario surveillance.

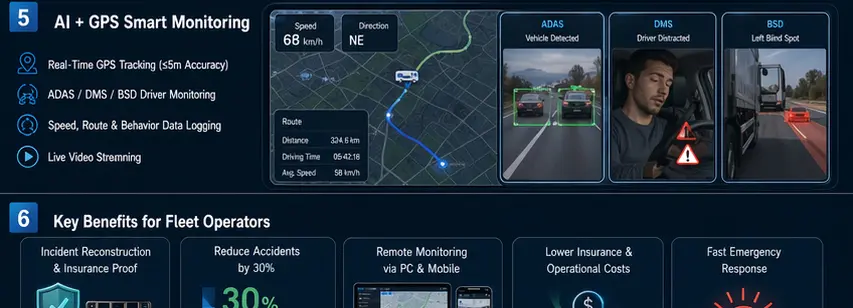

GPS Tracking & Video Monitoring
YUWEI AI dashcams combine high-definition video with real-time GPS to collect location, speed and other operational data simultaneously, creating traceable driving records and delivering dual protection for professional fleet management.
Core Advantages
• Incident Reconstruction & Anti-Fraud Claims
Complete video footage, combined with GPS data and collision sensing, enables accurate liability determination to prevent false claims. Recorded videos serve as valid, admissible evidence for insurance settlements.
• Standardized Driving Behavior
Built-in ADAS, DMS and BSD systems monitor unsafe driving behaviors. Dual alerts via voice prompts and cloud backend notifications reduce accident rates by over 30%.
• Remote & Efficient Fleet Management
Real-time video viewing and route tracking are accessible via PC and mobile terminals. Dynamic supervision, route optimization and remote device control significantly improve overall operational efficiency.
• Operational Cost Reduction
Video evidence cuts compensation costs, qualifies fleets for insurance premium discounts, and minimizes unnecessary vehicle wear and fuel waste.
• Compliance & Rapid Emergency Response
Fully compliant with national transportation industry standards. Collision and emergency alarms are pushed instantly to accelerate on-site incident handling.

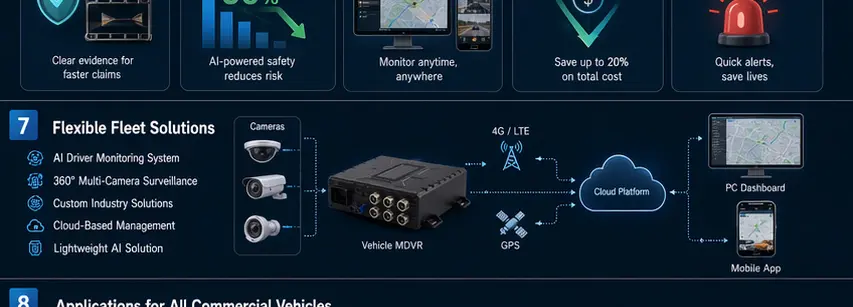

YUWEI Customized Fleet Solutions
1. AI Intelligent Driving Monitoring System
AI algorithms identify pedestrians, traffic signs and driver violations with instant alarm notifications. Supporting up to 8-channel simultaneous camera recording, it realizes full-scenario remote management via web and mobile APP.
2. Multi-Camera Panoramic Protection Solution
4–8 connected cameras paired with 1TB large-capacity storage deliver comprehensive blind-spot-free coverage. Complete and tamper-proof data chains are recognized by insurance companies, effectively reducing losses and claim costs.
3. Custom Solutions for Transportation Industry
Tailored shock-resistant and wide-temperature monitoring systems for special vehicles. Compatible with hybrid camera access, dual storage, 4G/5G/Wi-Fi transmission and multi-sensor integration to support full-lifecycle fleet supervision.
4. 360° AI Multi-Camera Intelligent System
Supports up to 8 cameras per vehicle for full 360° coverage. AI provides accurate hazard early warnings, while 4G/5G real-time streaming and up to 180-day cloud storage combine with high-precision positioning and route optimization.
5. Cloud-Based Rapid Deployment Solution
All-in-one devices support multi-channel recording and automatic event clip uploading. Cloud transmission eliminates manual SD card collection. Easy installation and remote firmware updates allow fast deployment for fleets of all sizes.
6. Lightweight AI Monitoring Solution
Integrates GPS, video monitoring and AI analysis. H.265 encoding saves storage and data consumption. Equipped with night vision and remote control functions, it supports expandable cameras to meet the demands of small and medium-sized fleets.

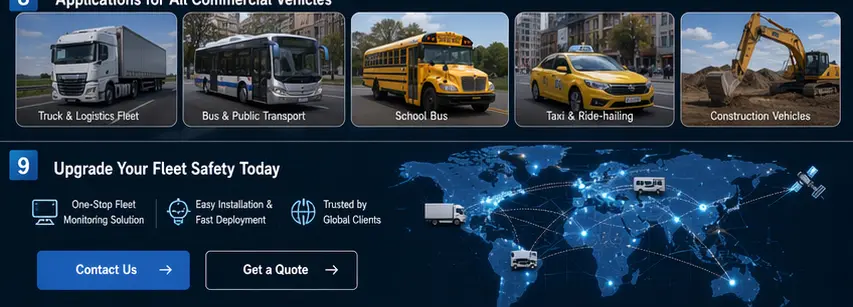

YUWEI integrated solutions are widely applicable to all types of commercial vehicles. Our product lineup, ranging from basic MDVR devices to advanced AI panoramic monitoring systems, caters to fleets of all scales. We help enterprises strengthen operational safety, streamline digital management and achieve high-efficiency fleet upgrading while protecting legal and operational rights.
