Best Dash Camera from China

Best Dash Cam from China

Date Time: May 06, 2024
Reading volume: 909
Author: YUWEI CAM

Best Dash Camera from China

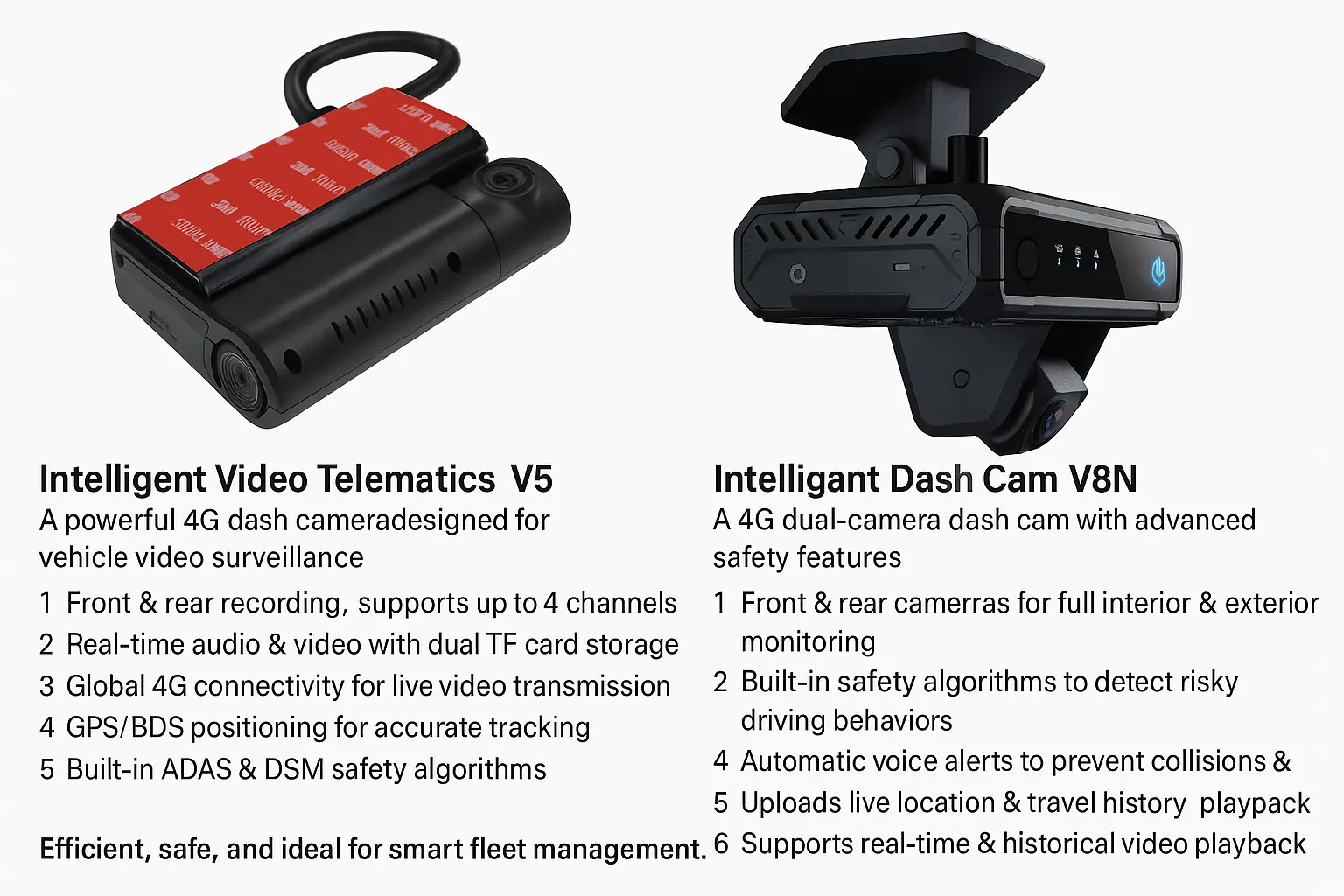

Best dash cam from China recommendation: 'YUWEI V5' integrates positioning, 2G/3G/4G communication, vehicle remote monitoring, ADAS, DMS, and BSD into one highly expandable and cost-effective onboard monitoring terminal. It features a built-in GPS+Beidou dual-mode positioning module, 4G module, audio/video codec SOC, supporting 8-channel 1080P audio/video input, SD card storage, and other functions. It collects vehicle position, speed, mileage, and other operating status information through abundant data ports, providing functions such as recording, display, U-disk data collection, and Bluetooth data collection for local vehicle management. It shares data with other onboard devices via WIFI and can connect to the internet via 4G for remote information exchange, data transmission, and control, thereby providing comprehensive and convenient tracking management services for fleet managers.



Features of the dash cam:

ADAS+DMS+BSD

Integrates advanced driver assistance system (ADAS), driver monitoring system (DMS), and blind spot detection (BSD) system.



1080P HD video

Supports real-time storage and uploading of 8-channel 1080P HD videos.



Real-time location monitoring

Reports latitude, longitude, speed, and other information according to the set transmission interval.



Large storage capacity

Supports simultaneous storage of 1 2.5-inch hard disk and 1 SD card for loop storage.



One-click alarm

Supports alarm triggering by signal linkage. Automatically uploads videos or photos when danger occurs.



Built-in driving recorder

Built-in driving recorder, also known as the car's 'black box,' provides important evidence for accident liability determination.



Rich expansion interfaces

External peripherals such as oil rods, advertising screens, fare meters, evaluators, roof lights, and safety modules can be connected via the pass-through port.



Data security

In case of disk failure or vehicle collision, uploads about 10 seconds of video to the cloud beforehand to ensure important videos are not lost.



Supports built-in disaster recovery

Supports built-in disaster recovery and remote intercom.



Protective memory

Built-in protective memory with high temperature fire resistance, ember protection, water resistance, and pressure resistance, ensuring the storage security of driving data and monitoring videos.



Dash cam specifications

Parameter classification

Parameter item

Details

Remark

Basic parameters

Appearance

device integrate with ADAS cam


Product Type

4G DVR Car Video Terminal


network standard

4G Global Band


Memory

256MB(Flash)+1GB(DDR)


Front camera

(ADAS Camera)

1080P, MIPI Camera, H:112°V:55°


In-car camera

AHD 720P, with light sensor/infrared night vision,


DSM camera

AHD Camera, single pass, infrared night vision, H=60° V=42°


4th Channel camera

AHD 720P


Hardware function









GPS

Support: GPS+BDS


Wi-Fi

802.11b/g/n


trumpet

8 ohms 1.5 watts, 1 channel, with sound cavity


MIC

Built-in dual silicon microphone design


Accelerometer

3-axis accelerometer


Interface

micro 5Pin USB

USB×1, data interface


BMW connector

Power+/GND

ACC

Left turning signal cable

Right turning signal cable

SOS Cable (Panic button)


RS232

1*RS232


SIM card holder

Micro SIM


TF card holder

TF×2 (Card 1 and Card 2 support circular storage)


Power supply

Power supply

12V/24V power supply


Button&

Indicator light



Reset button

Long press the power button for 8 seconds to reset


indicator light

2-color indicator


Alarm key

Standard emergency alarm connector




Antenna



GPS Antenna

Built-in ceramic antenna


4G antenna

Built-in FPC+IPEX transposon


WIFI antenna

Built-in FPC+IPEX transposon


Memory card

4G2TB, patented DXR streaming storage format


Electrical Specification

Operating temp.

-20℃70℃


Storage temp.

-40℃85℃


Static Protection

6KV contact, 10KV air


Vibration test

Car vibration


Current consumption

When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.)

When ACC OFF: ≤3mA


Other quality requirements

According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)


Product specification pictures:

Best Dash Camera from China

Dash Camera China Manufacturer

Red light

Equipment situation

Light status

Before the program is ready

Solid on

during upgrade

On for 1 second, off for 4 seconds

update completed


camera lost

On for 0.1 seconds, off for 0.1 seconds, flashing 4 times at a time, flashing once every 4 seconds

SIM card missed

On for 1 second, off for 1 second

other status

Always off



Green light

Equipment situation

light status

Before the program is ready

Solid on

during upgrade

On for 1 second, off for 4 seconds

update completed


The card is recording normally

On for 1 second, off for 1 second

Unrecorded card abnormal

On for 0.1 seconds, off for 0.1 seconds, flashing 4 times at a time, flashing once every 4 seconds

other status

Always bright

TF card/SIM card/USB location

Dash Camera China supplier

Why Choose YUWEI?

- Comprehensive warranty coverage.

- Focus on technological innovation and environmentally friendly production.

- Commitment to reliable quality with positive user feedback.

- Dedication to providing the best products and services.

Dash Cam Q&A

Are fleet dash cams legal?

Fleet dash cams are legal in most regions, but specific regulations vary by country. Some areas may have specific requirements for the use and data protection of the dash cam. It is recommended to consult with the relevant local agencies before installation and abide by relevant regulations.


How do fleet dash cams work?

Fleet dash cams are usually installed inside vehicles and collect driving data through cameras and other sensors. They record video, sound, GPS location, vehicle speed, and more and store it on the device or in the cloud. These data can be used to analyze driving behavior, map driving paths, replay accidents, and more.

How much does a dash cam front and rear cost?

Different models mean different configurations of dash cam (specifically reflected in camera video quality, storage capacity, display size, auxiliary functions, etc.). The cost of a single YUWEI car camera is US$25; for example, the price of Mobile DVR is US$120


*It is recommended that you can send us your functional requirements and request a quotation from us. We are a Chinese automobile monitoring manufacturer, and cost is our biggest advantage;

Fleet dash cam solution

You can refer to "Fleet Management Solutions" to understand the management system solutions of yuweitek trucks, buses, school buses, buses, taxis and other fleets.

https://en.yuweitek.com/solution.html
