Dash Cam with Rear view Camera


The V5 is a Dash Cam with Rear view Camera. Its main features include:

- GPS positioning recording

- Front and rear 1080p recording

- Driving time, speed, distance, driver ID, fatigue driving detection, and more.


It helps ensure compliance with regulations and monitors driver activity to ensure safety and responsibility. We also offer functions with GPS tracking capabilities that can locate, record driving and accident data, and upload it to servers. Fleet managers can restrict the range of vehicle activities through regional fencing features to ensure safety.

Dash Cam with Rear view Camera

YUWEI front and rear dash cam

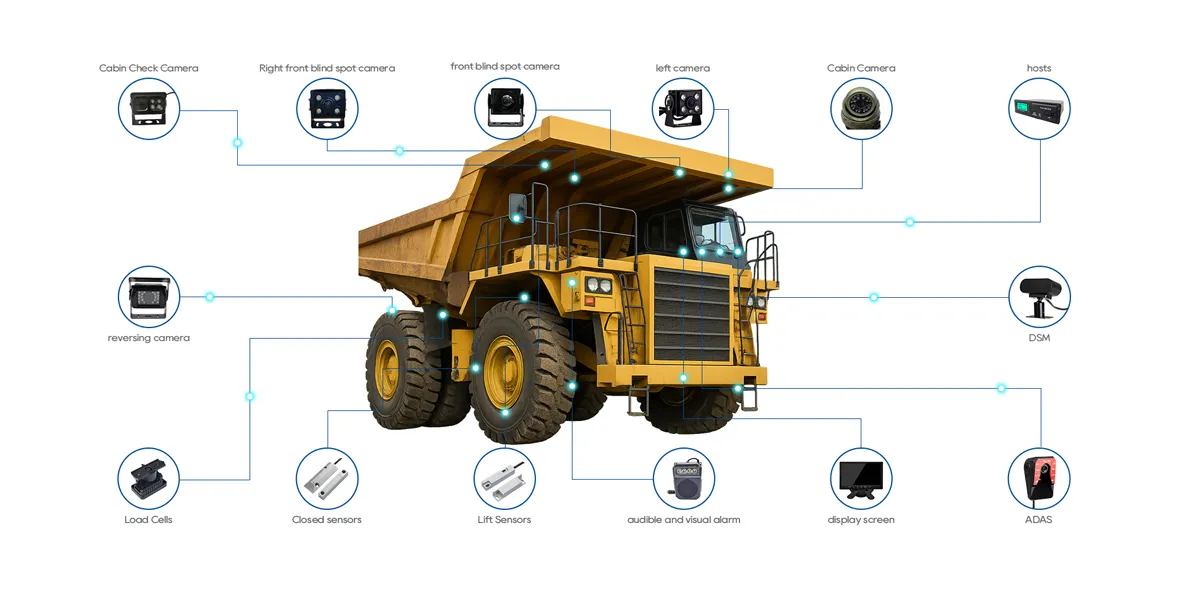

Supports up to 4 camera channels, providing real-time audio and video recording, and dual TF card storage. Through global 4G network connection, real-time video transmission is achieved, while GPS/BDS positioning ensures accurate tracking.



The V5 dash cam also integrates built-in active safety algorithms (ADAS, DSM) to enhance safety. It is widely used in areas such as online car-hailing, taxis, logistics, and official vehicles.



Dash cam specifications:

Parameter classification

Parameter item

Details

Remark

Basic parameters

Appearance

device integrate with ADAS cam


Product Type

4G DVR Car Video Terminal


network standard

4G Global Band


Memory

256MB(Flash)+1GB(DDR)


Front camera

(ADAS Camera)

1080P, MIPI Camera, H:112°V:55°


In-car camera

AHD 720P, with light sensor/infrared night vision,


DSM camera

AHD Camera, single pass, infrared night vision, H=60° V=42°


4th Channel camera

AHD 720P


Hardware function









GPS

Support: GPS+BDS


Wi-Fi

802.11b/g/n


trumpet

8 ohms 1.5 watts, 1 channel, with sound cavity


MIC

Built-in dual silicon microphone design


Accelerometer

3-axis accelerometer


Interface

micro 5Pin USB

USB×1, data interface


BMW connector

Power+/GND

ACC

Left turning signal cable

Right turning signal cable

SOS Cable (Panic button)


RS232

1*RS232


SIM card holder

Micro SIM


TF card holder

TF×2 (Card 1 and Card 2 support circular storage)


Power supply

Power supply

12V/24V power supply


Button&

Indicator light



Reset button

Long press the power button for 8 seconds to reset


indicator light

2-color indicator


Alarm key

Standard emergency alarm connector




Antenna



GPS Antenna

Built-in ceramic antenna


4G antenna

Built-in FPC+IPEX transposon


WIFI antenna

Built-in FPC+IPEX transposon


Memory card

4G~2TB, patented DXR streaming storage format


Electrical Specification

Operating temp.

-20℃~70℃


Storage temp.

-40℃~85℃


Static Protection

6KV contact, 10KV air


Vibration test

Car vibration


Current consumption

When the working voltage is 12V, the current is from 500mA to 1A (depending on whether the algorithm is turned on, etc.)

When ACC OFF: ≤3mA


Other quality requirements

According to JT/T794 standard (including hard test, soft test, reliability, quality, etc.)


Dash cam function:

- Built-in positioning module and antenna, supports dual-mode GPS/BDS positioning.

- Built-in communication module and antenna, supports global 4G communication, supports SMS command functions.

- The terminal has ultra-clear real-time video recording function, integrated with 1 channel of 1080P HD camera, and can connect 3 channels of 720P HD cameras externally.

- Supports up to 2*2TB TF cards for storing real-time video.

- Supports ADAS (Advanced Driver Assistance System), DSM (Driver Status Monitoring) functions.

- Supports functions such as facial recognition, non-mask recognition, and people counting.

- Has 1 USB interface, supports driving record export function.

 best Dash Cam with Rear view Camera

dash cam with wireless rear view camera

hnweb_rear view mirror dash cam with <a href='https://en.yuweitek.com/the-10-best-backup-camera-manufacturers-of-2024.html' style='color: #014a97;' target='_blank'>backup camera</a>

hnweb_fleet dash cam with rear view camera

dash cam supplier

The cost of the Dash Cam with Rear view Camera is $125. The terminal has ultra-clear real-time video streaming function, integrated with 1 channel of 1080P HD camera, and can connect 3 channels of 720P HD cameras. Welcome to purchase.

Dash Cam Q&A

Is the data stored on the device easily lost?

The device should be kept away from water and should not be hung. When the device is installed correctly, the data is safe. The storage temperature is between -40°C and 85°C. Additionally, even if the device suddenly loses power, the data stored on the device will not be lost within 10 years.

Can these devices support more functions?

Yes, we can provide dash cams and speed limiters with positioning and communication modules. They support uploading location data, photos, and audio to the platform, ensuring data security and improving management monitoring efficiency.

In which scenarios are dash cams with rear view suitable for?

They are suitable for all commercial vehicle transportation of dangerous goods, such as trucks, buses, and vehicles.
